AC Charging Stations with integrated payment terminal
Floor-standing dual-port UGV Chargers AC stations with 22 or 44 kW total power, Type 2, OCPP, RFID / NFC and payment directly at the charging station.
Which Configuration Fits Your Location?
All three models have two ports and an integrated payment terminal. The main differences are total power and the vehicle connection type.
22 kW · 2 × Type 2 Cables
For locations with longer parking times and lower available electrical capacity. Two integrated cables are available directly at the station.
View 22 kW Configuration →44 kW · 2 × Type 2 Cables
For busier car parks and simultaneous charging of two vehicles, where higher electrical capacity is available.
View 44 kW Configuration →44 kW · Socket + Cable
Flexible configuration: one driver uses the station cable, the other uses their own Type 2 cable.
View Combined Configuration →Public Charging with a Simple Payment Experience
With the payment service configured correctly, the driver can pay for charging directly at the station without creating an account in the mobile app.
Payment at the Station
Suitable for publicly accessible and commercial locations.
Touchscreen Control
Charging control directly at the station.
RFID / NFC
An additional authorisation option for selected users.
Remote Management
Connection of the charging station to the backend and operating system.
Choose Power and Type 2 Configuration
The current range includes three floor-standing dual-port AC stations with an integrated payment terminal. They differ in total power and charging port configuration.
22 kW · 2 × Type 2 Cables
Dual-port AC charging station with two integrated Type 2 cables. A practical configuration for two parking spaces where vehicles remain parked longer.
44 kW · 2 × Type 2 Cables
Higher-power dual-port configuration with two integrated Type 2 cables. Suitable for busier commercial and public car parks.

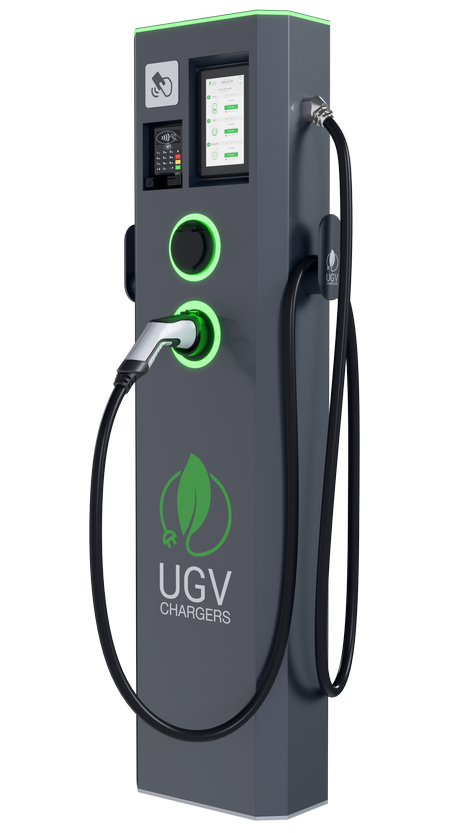

44 kW · Type 2 Socket + Cable
Flexible configuration with one Type 2 socket and one integrated Type 2 cable. The driver can use their own cable or the integrated station cable.
Which AC Charging Station with Payment Terminal Fits Your Location?
All three models are floor-standing and dual-port and support OCPP, RFID / NFC and remote management. The main differences are total power and vehicle connection type.
| Model | Power | Ports | Terminal | Design |
|---|---|---|---|---|
| UGV-A22AG-T11T11-RMHT | 22 kW | 2 × Type 2 cable | Yes | Floor-standing |
| UGV-A44AG-T22T22-RMHT | 44 kW | 2 × Type 2 cable | Yes | Floor-standing |
| UGV-A44AG-O22T22-RMHT | 44 kW | Type 2 socket + Type 2 cable | Yes | Floor-standing |
Available charging power also depends on the electrical capacity of the site and the onboard AC charger limit of the connected EV.
AC Charging Stations with Payment Terminal for Managed Parking
They are especially suitable where vehicles remain parked longer and charging is used by different drivers.

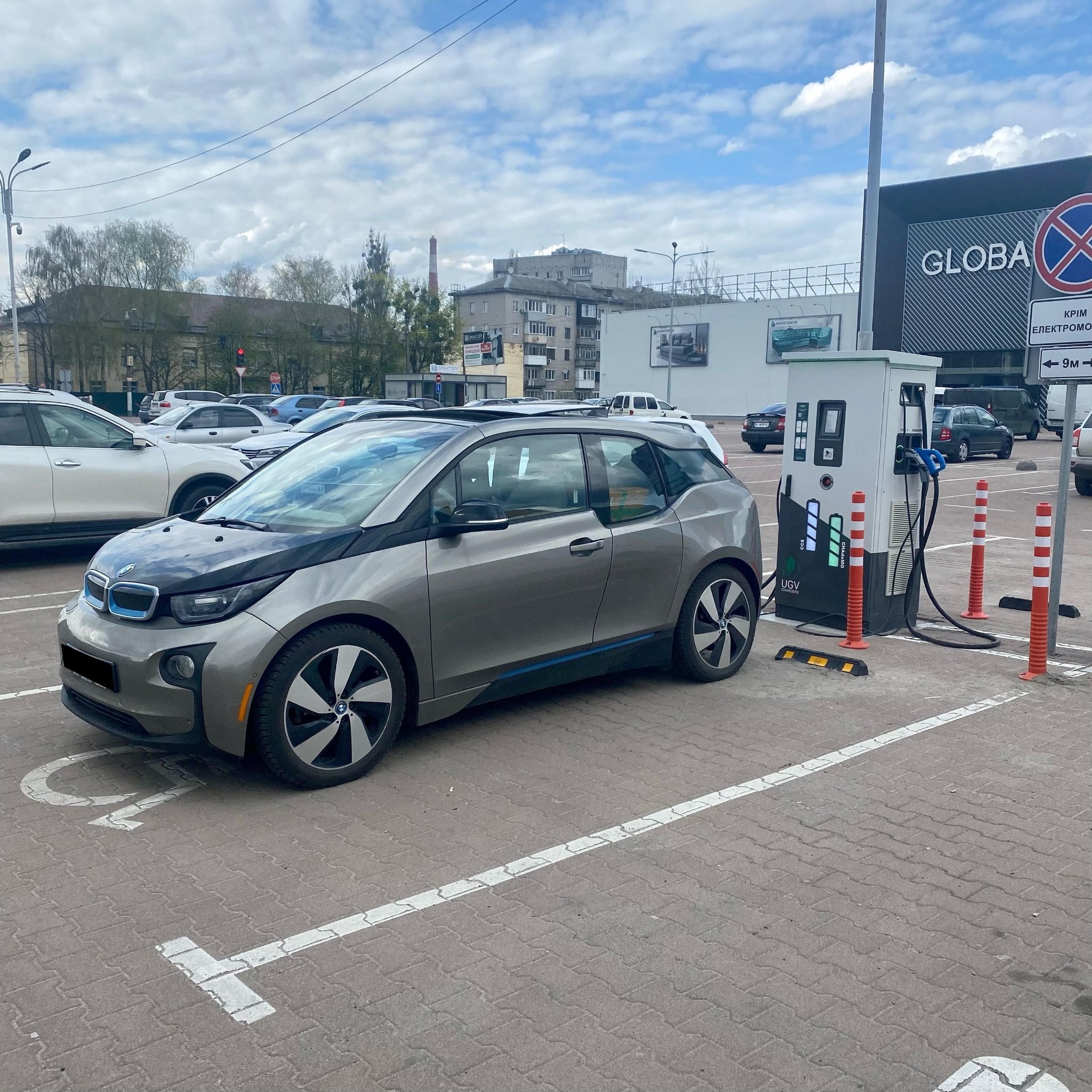

Shops and Shopping Centres
Charging during shopping or a longer visit.

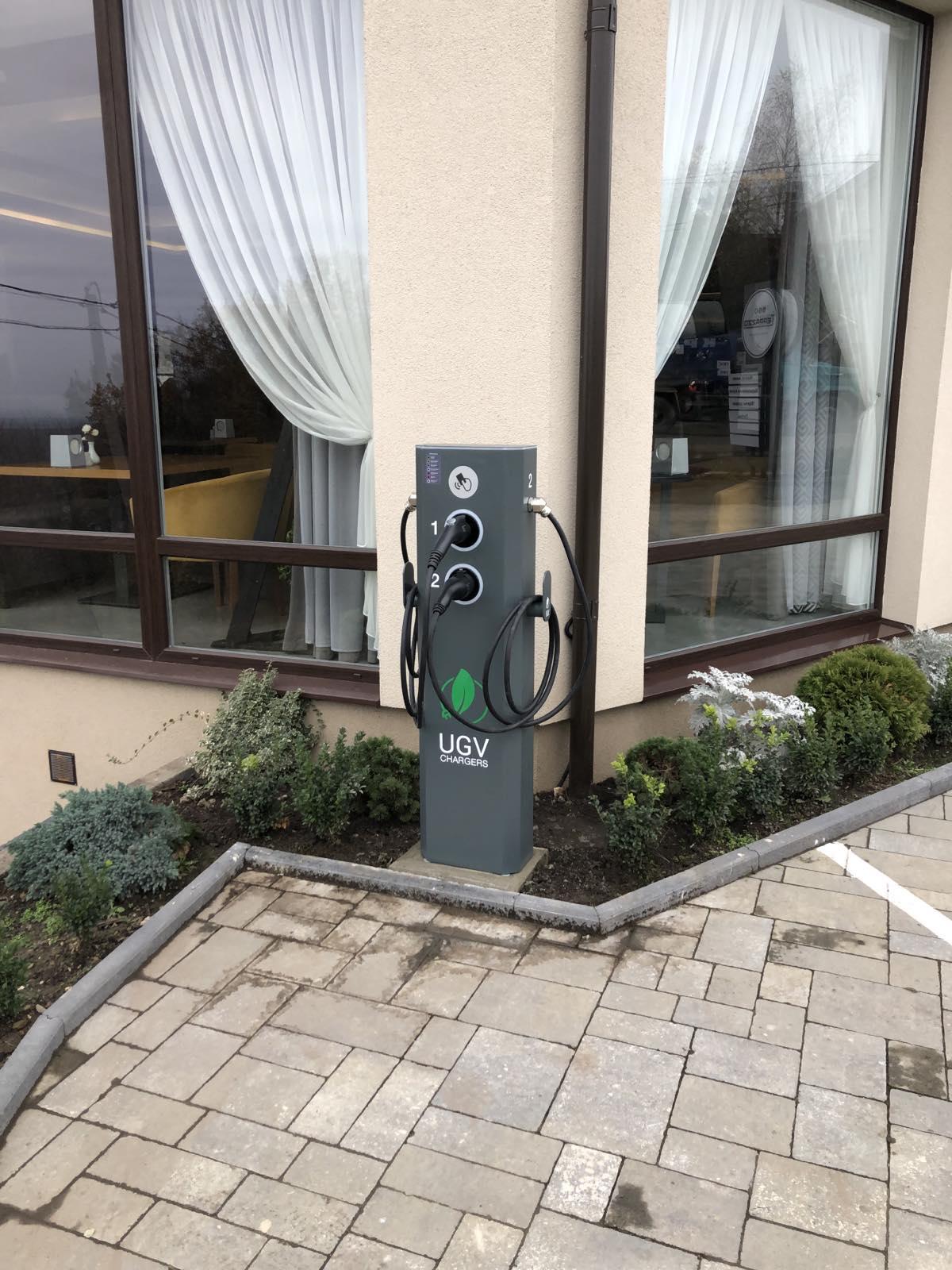

Hotels and Accommodation
Managed charging during a guest's stay.

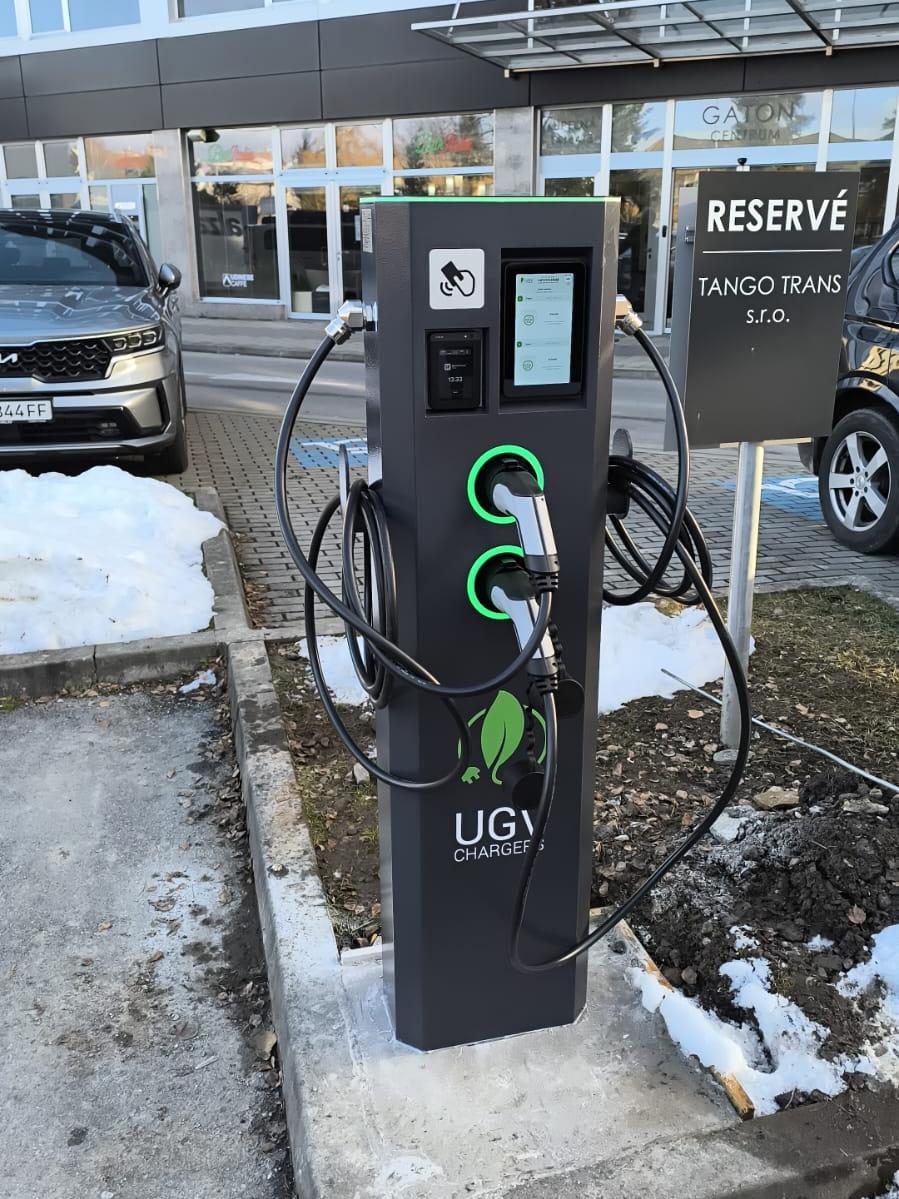

Public Car Parks
Payment at the station for different users.
Managed Car Parks
For companies, residential properties and mixed commercial locations.
The Terminal Handles Payment. OCPP Supports Operation.
The stations can be connected to a software platform for monitoring, user management, tariffs and charging sessions.
You Do Not Need to Choose Between 22 and 44 kW Yourself
Send us the basic information about the location. We will recommend the model and operating setup for the project.
Location Type
Retail, hotel, public or another managed parking location.
Number of Spaces
How many vehicles should be served simultaneously.
Available Electrical Capacity
Helps determine whether a 22 or 44 kW configuration is appropriate.
Usage Model
Public paid charging or managed access.
Want to Compare Other AC or DC Charging Stations?
The catalogue includes the wider UGV Chargers portfolio, additional power levels, connectors and optional equipment.
AC Charging Stations with Payment Terminal
Which AC Charging Stations with Payment Terminal Does UGV Chargers Offer? +
What Is the Payment Terminal Used for on an AC Charging Station? +
What Is the Difference Between the 22 kW and 44 kW Models? +
Is a Station with an Integrated Cable or Type 2 Socket Better? +
Do the Charging Stations Support OCPP? +
Are the Charging Stations Suitable for Outdoor Installation? +
Which AC Charging Station with Payment Terminal Fits Your Location?
You do not need to decide between 22 and 44 kW yourself. Send us the location type, number of parking spaces and available electrical capacity.
